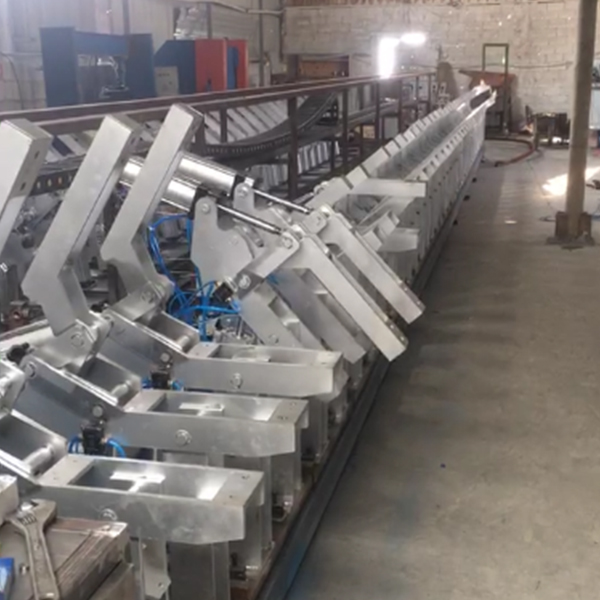

Large-tonnage mold automatic opening and closing system | Customizable stroke | Servo-driven precise positioning | anti-offset guide rail
Typical applications: ➤ Automotive body panel/interior mold production line ➤ Opening and closing of large composite material forming molds ➤ Automated transfer of die-casting molds
Product Details
Core advantages
Super load-bearing capacity - The steel structure reinforced body, with a single-track load-bearing capacity of up to 50 tons, is suitable for the transportation and opening and closing of large molds in automobiles, aviation, etc.
Precise positioning - Servo motor + high-precision rack drive, repeat positioning error ≤±0.1mm, ensuring the tightness of mold closure.
Anti-offset design - Double V-shaped guide rails + self-lubricating wear-resistant bushings, resistant to lateral impact, no deformation after long-term use.
Flexible expansion - Supports multi-station series connection (optional linear/circular layout), compatible with the linkage of mechanical arms or turnover machines.
Technical parameters
Load: 10T/20T/30T/50T (customizable)
Track length: 3m to 20m (modular splicing)
Drive mode: Servo/frequency conversion is optional
Positioning accuracy: ±0.1mm (optional ±0.05mm high-end version)
