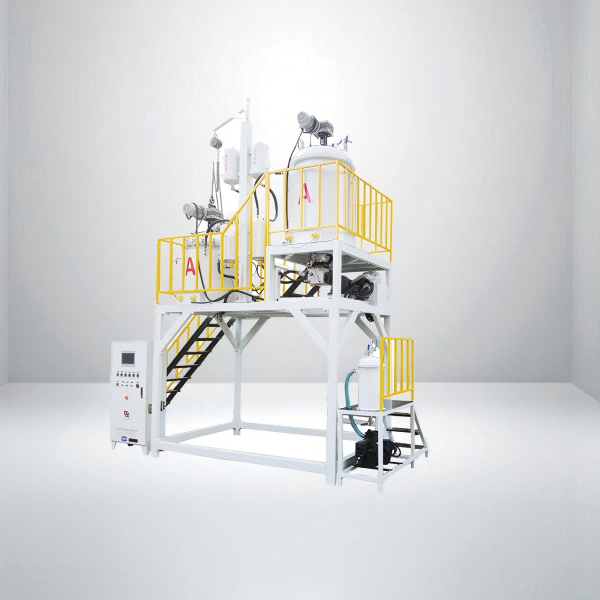

NDI reaction system dedicated | Polyester Polyol dehydration synthesis device | NDI prepolymer production equipment

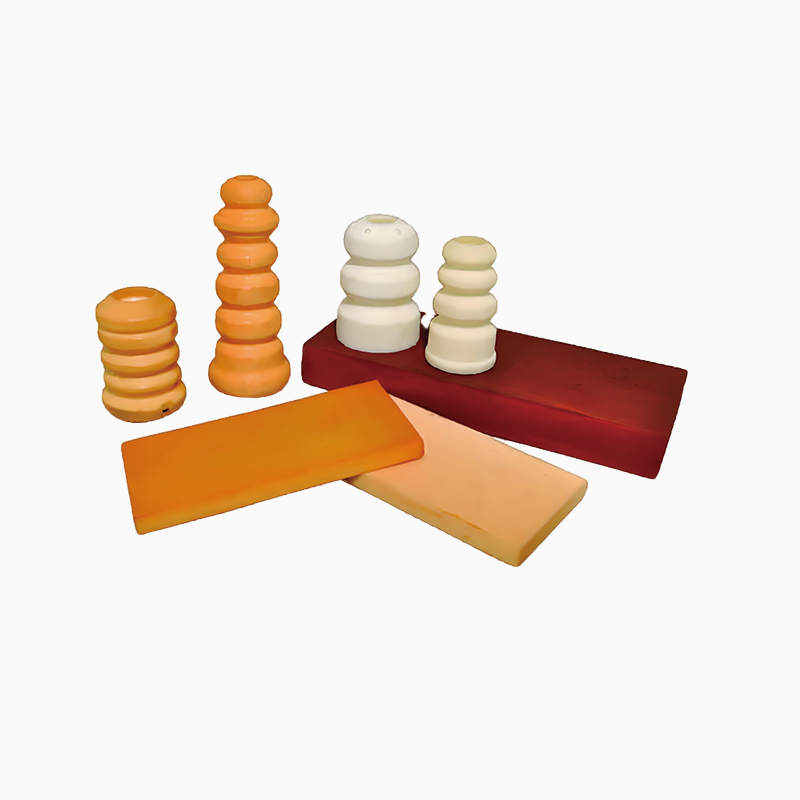

Application scenarios: ✓ Production of NDI-based polyurethane prepolymers ✓ Research and development of special elastomers/adhesives ✓ Processing of raw materials for high solid content coatings
Product Details
Core
Designed specifically for the synthesis of NDI prepolymers - precisely solving the dehydration problem of polyester polyols, avoiding side reactions between NDI and water, and enhancing the purity of prepolymers.
Fully enclosed inert gas protection - integrated high vacuum dehydration + nitrogen displacement system, moisture content ≤0.02%, ensuring the stability of the NDI reaction.
Intelligent temperature control and corrosion resistance - 316L stainless steel reactor, PID segmented temperature control (room temperature to 200℃±1℃), suitable for high-temperature dehydration conditions of polyols.
Modular expansion interface - can be connected to metering pumps, online viscometers, etc., meeting the requirements of continuous production.
Technical parameters
Volume: 50L - 5000L (customized)
Vacuum degree: ≤-0.098MPa
Material: Reaction contact surface 316L/PTFE lining
