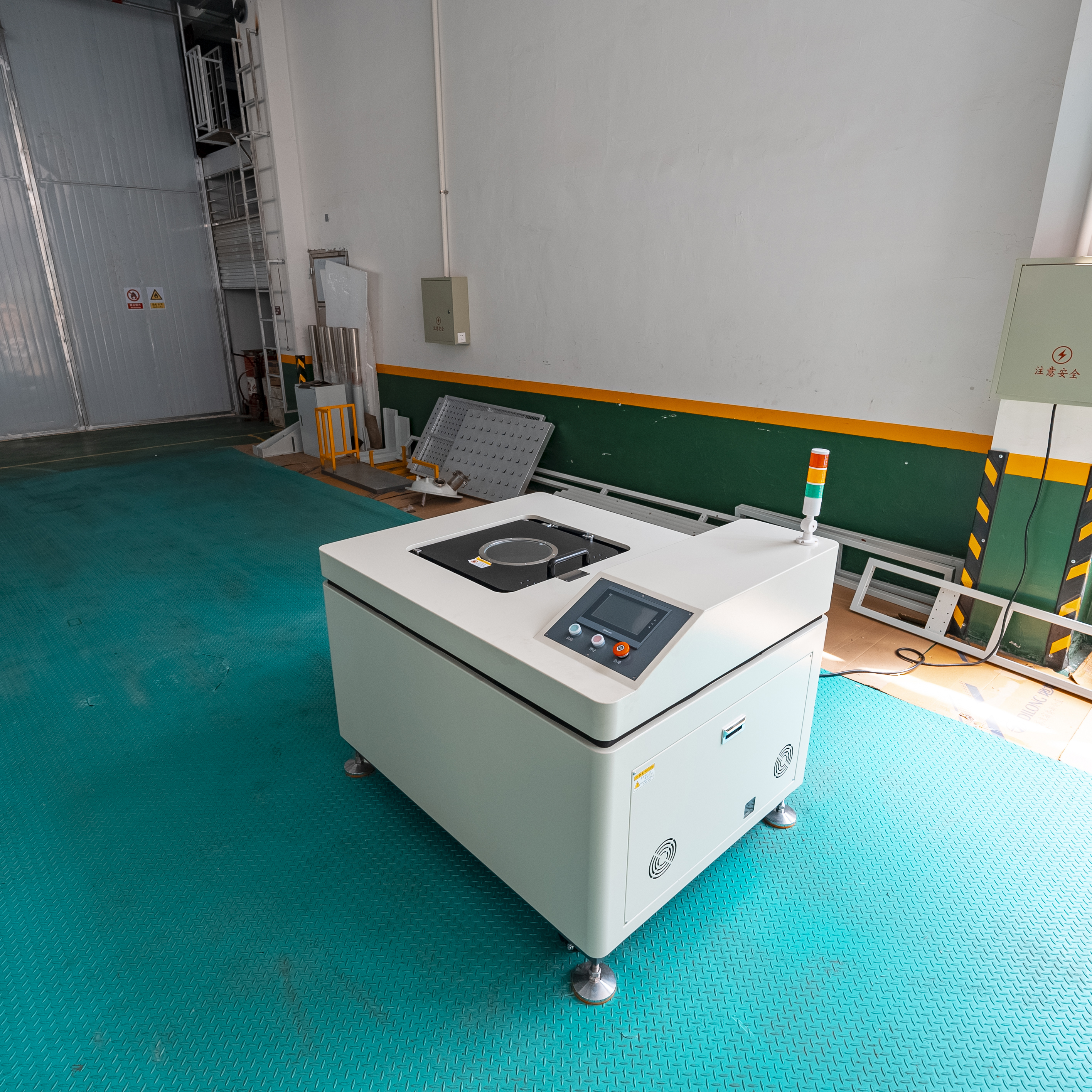

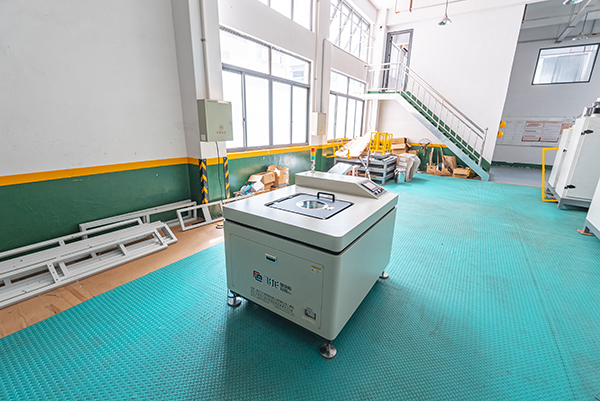

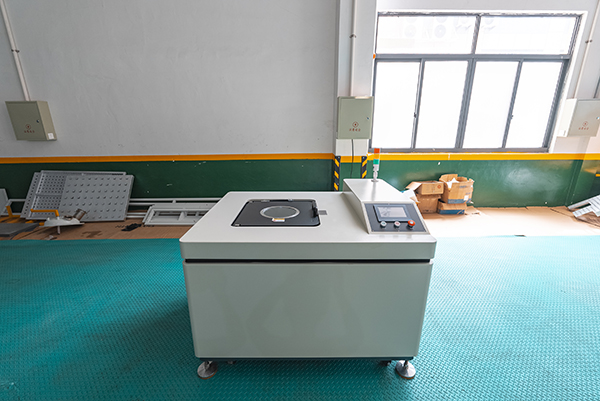

Polyurethane centrifugal mixer | High-pressure centrifugal casting | Suitable for roller/pipe lining/special parts production

Type/L*W/Inner diameter
CPU-LX-500/1500*420/500*420
Type/L*W/Inner diameter
CPU-LX-700/2100*770/700*770
Type/L*W/Inner diameter
CPU-LX-1000/3000*650/1000*650
Type/L*W/Inner diameter
CPU-LX-1300/4000*1020/1300*1020
Type/L*W/Inner diameter
CPU-LX-1410/5090*800/1410*800

APPLICATION: Production of polyurethane elastomer sheets, with a thickness range of 1-20mm.

Product Details

FEATURES

1.This machine ensures production of high-quality Cast Polyurethane  (CPU) elastomer sheets with uniform Shore A hardness and smooth, flawless surfaces.

2.Electrically heated  centrifugal drum with automatic  temperature  control  for precise adjustment  (temperature  and  thermal gradients significantly affect sheet properties and hardness—higher temperatures result  in lower  hardness  in  corresponding  areas). Heating range: 100-150°C ±5°C.

3.The machine features a precision-engineered design with variable-frequency speed control, an axial runout of 0.05mm, and a polished inner drum surface for optimal performance.

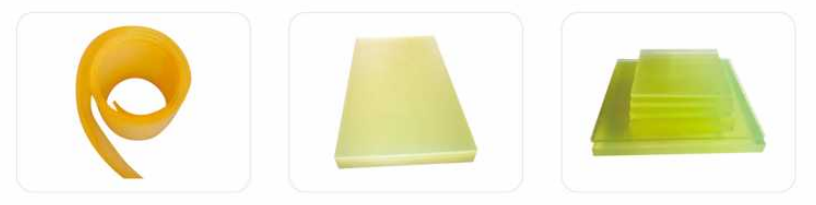

END PRODUCTS
