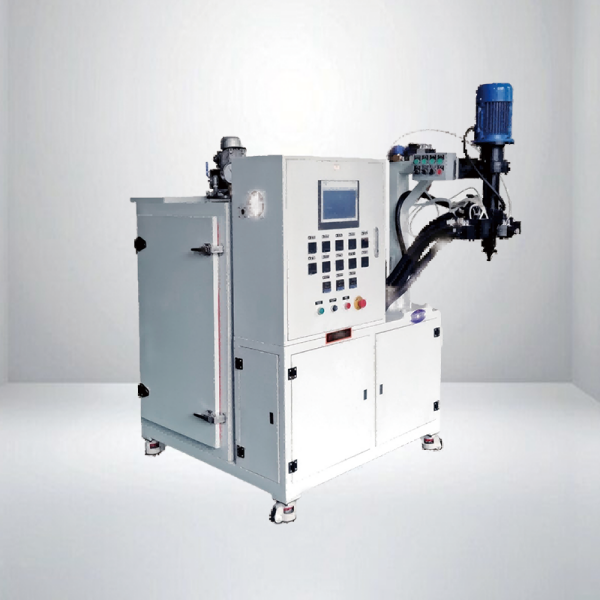

POLYURETHANE ELASTOMER FORMULA TESTING MACHINE CPU 20/30FS (series)

CPU20F/output

100-500(g/min)

CPU20F/power

8(kw)

CPU20F/material tank A

15(L)

CPU20F/material tank B

10(L)

CPU20F/Outline size(LWH)

1000*1800*1600

CPU20F/Weight

400(kg)

APPLICATION：Pouring machine for laboratory formulation trials of castable elastomers using chain extenders such as MOCA or BDO.

FEATURES

1.Compact and lightweight design, easy to operate.

2.Precise metering with high-precision low-speed gear pumps; error 5%.

3.Uniform mixing ensured by a multi-tooth high-shear mixing head for reliable performance.

4.Floating mechanical seal in the pouring head to prevent

material backflow.

5.Multi-point temperature control system maintains stable

material temperature with error < ±2°C.

6.Bubble-free samples achieved with an integrated vacuum

degassing system.

7.Oven-style heating with fan circulation for energy efficiency.

8.PLC-controlled system with touchscreen interface; user-friendly operation, supports 99 recipe storage, and high automation.

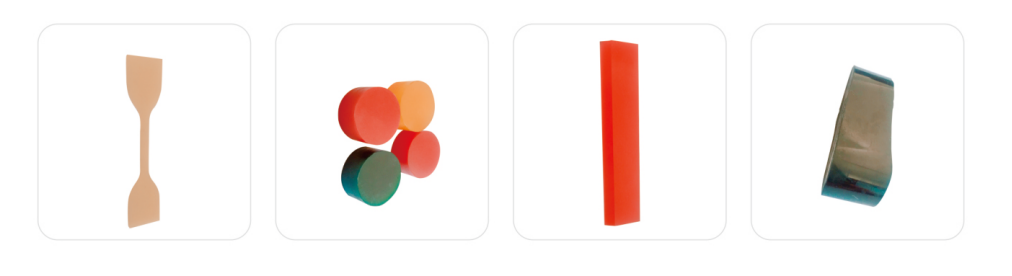

END PRODUCTS
